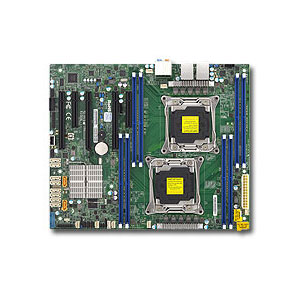

X10DAL-i
Key Features
- Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
- Intel® C612 chipset
- Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
- 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x4 (in x8), 1x PCI-E 2.0 x4 (in x8) slot
- Dual GbE LAN ports via Intel® i210
- 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
- 6x USB 3.0 (4 rear, 2 via header) 3x USB 2.0 (2 via header, 1 Type A)
- 7.1 HD Audio with optical S/PDIF
- Thunderbolt Add-On Card support
